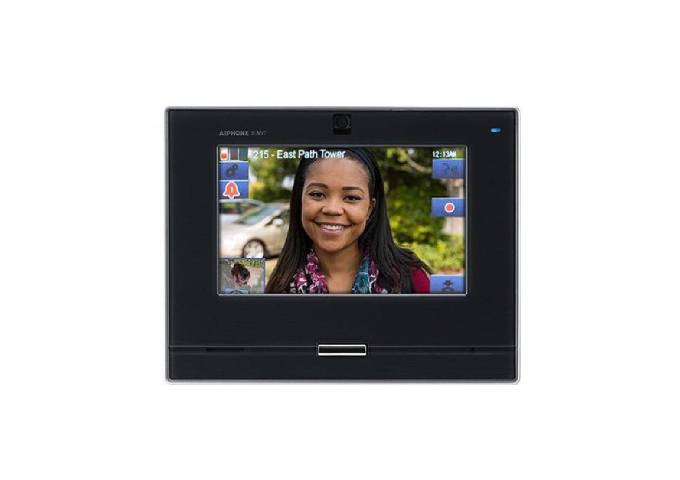

Aiphone IX-MV7-B, 7€³ Colour display Master Station €“ Black
Aiphone IX-MV7-B, 7€³ Colour display Master Station €“ Black
Part Number:
AIP948B
SKU: AIP948B
Brand:
Aiphone
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Aiphone IX-MV7-B, 7″ Colour display Master Station€“ Black
Components:
- SIP Compatible IP Video Master Station
- 7" Touchscreen and Hands-free (Black)
Features:
- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
- ONVIF® Profile S Compliant
- 802.3af PoE, Class 0
- 7″ TFT LCD touchscreen
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist€“ ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs, 4 trigger inputs
- 8Ω 1/2 watt speaker output provides better coverage for announcements
- 600Ω audio input.
- Aiphone IX-MV7-B 2-year warranty!
Specifications:
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 4.32 Watts
- Camera:…“" CMOS 720p
- Min. illumination: 5 Lux
- Audio Codec: G.711 (μ-law, A law), G.722
- Video Codec: H.264/AVC, Motion JPEG
- Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security: IEEE 802.1X
- Operating Temp: 32° - 104°F (0° - 40°C)
- Dimensions: 6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
- Mounting: Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
