Aiphone IX-MV7-HB, 7€³ Black Video Master Station With Handset And Colour Display

Aiphone IX-MV7-HB, 7€³ Black Video Master Station With Handset And Colour Display

Part Number:
AIP947B
SKU:  AIP947B
Brand:  Aiphone
Trade pricing available via login.
View full details

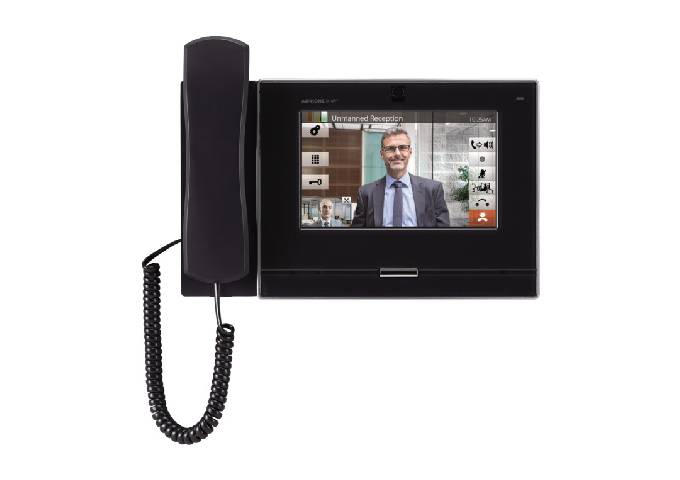

Aiphone IX-MV7-HB, 7″ Black Video Master Station With Handset And Colour Display

Touchscreen Master Station with Handset

The IX-MV7-HB is an IP addressable hands-free or handset master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included).


Components:

  • SIP Compatible IP Video Master Station
  • 7" Touchscreen and Privacy Handset (Black)

Features:

  • SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
  • ONVIF® Profile S Compliant
  • 802.3af PoE, Class 0
  • 7″ TFT LCD touchscreen
  • Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
  • Hands-free or push-to-talk communication
  • 8 customisable speed dial buttons
  • Turn your master into a virtual receptionist€“ ideal for unmanned waiting areas or unstaffed lunch hours
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
  • 2 contact outputs, 4 trigger inputs
  • 8Ω 1/2 watt speaker output provides better coverage for announcements
  • 600Ω audio input.
  • Aiphone IX-MV7-HB 2-year warranty!

Specifications:


  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 4.32 Watts
  • Camera:…“" CMOS 720p
  • Min. illumination: 5 Lux
  • Audio Codec: G.711 (μ-law, A law), G.722
  • Video Codec: H.264/AVC, Motion JPEG
  • Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
  • Port Security: IEEE 802.1X
  • Operating Temp: 32° - 104°F (0° - 40°C)
  • Dimensions: 8-1⁄16" H x 11" W x 2-3⁄16" D
  • Mounting: Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
