Aiphone - IXG Series IP Multi-Tenant Video Intercom

• Firstly, The new IP Apartment Intercom system from Aiphone is a pure IP based solution that can be connected directly onto a network infrastructure.


• In essence, this is done without the need for additional system components such as servers and dedicated distributors.


• Secondly, Installation time and cost are further minimised by the availability of entrance and room stations which feature PoE for easy wiring.


• Thirdly, The Aiphone IP Apartment Intercom system supports up to 9,999 units deployed across a maximum of 99 interconnected buildings.


• Furthermore, regardless of the size of the initial project, with no server required and no license fees. Moreover, it could not be simpler to add additional stations when new accommodation units or towers are added.


• In summary, for mixed purpose buildings and campuses requiring a higher level of security, the IP Apartment Intercom system can be integrated with Aiphone’s full IP perimeter. In summary, this is a call forwarding system to provide emergency broadcasts and site control.

Key Features

• Firstly, stylish and practical 7â€Â touchscreen entrance station with recording
• Secondly, a 7â€Â touchscreen master station
• Thirdly, a smartphone Application provides remote access and control. Additionally, accessible anywhere in the World via an Android / iOS device for the Aiphone IXG-DM7.



Main System Components

• IXG-2C7 VIDEO TENANT STATION
• IXG-DM7 VIDEO ENTRANCE STATION - ( DETAILS BELOW )
• IXG-MK GUARD STATION

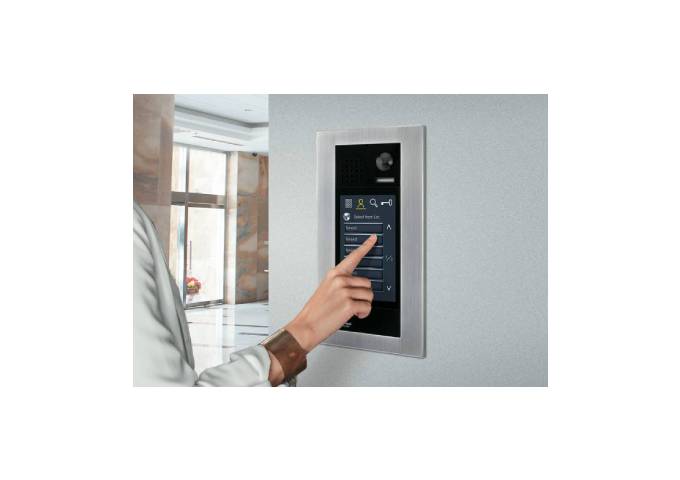

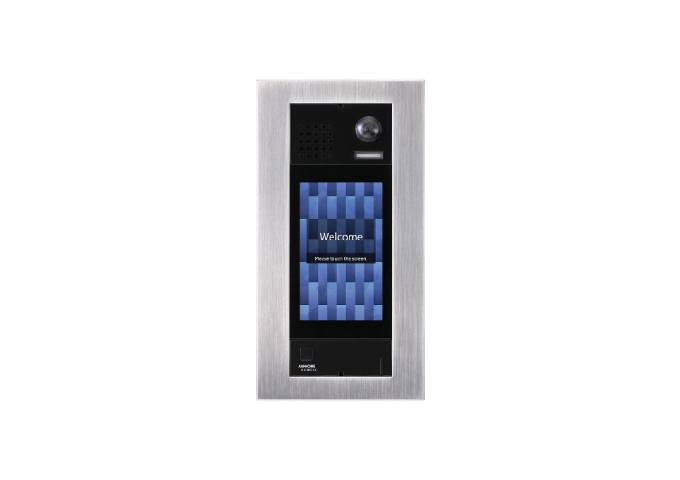

Aiphone IXG-DM7Video Door Station

• 7â€Â LCD Touchscreen - Flush wall-mount
• Front panel: Stainless steel, vertical alignment finished
• Main unit - Case: Self-extinguishing ABS resin
• LCD display: Glass
• IP65 rated, weather resistant
• Customisable Welcome screen
• Video and Audio may be recorded continuously using internal micro SD card
• 2 Way video communication with Guard stations
• Supports up to 9,999 units deployed across 99 interconnected buildings
• Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
• ONVIF® Profile S Compliant
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• 1.23 megapixel fixed colour video camera
• 1/3-inch color CMOS
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• White LED for low light illumination
• Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)
• 2 contact outputs (door release, external signaling)
• 6 trigger inputs
