Dahua, NVR4108HS8P3TB, NVR 8ch 1SATA 8PoE 3TB Lite Series
Dahua, NVR4108HS8P3TB, NVR 8ch 1SATA 8PoE 3TB Lite Series
Dahua, NVR4108HS8P3TB, NVR 8ch 1SATA 8PoE 3TB Lite Series

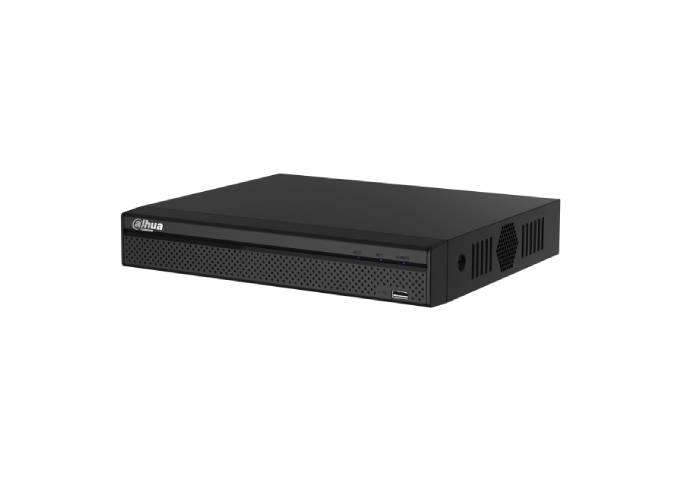

The Dahua NVR4108HS8P3TB is an 8-channel NVR from the Lite Series designed to deliver reliable performance and seamless video management. Equipped with an integrated 3TB hard drive, it ensures ample storage for high-definition recordings. With 8 PoE ports, this NVR simplifies installation by supplying both power and data through a single cable for connected IP cameras.
Supporting resolutions up to 8MP, the device ensures superior video clarity for a wide range of surveillance needs. Furthermore, it is compatible with advanced AI features, including facial recognition and people counting, when paired with AI-enabled cameras. Its intuitive interface and support for remote access via mobile applications make it convenient for real-time monitoring and playback.
Ideal for small to medium-sized surveillance setups, the NVR4108HS8P3TB is a cost-effective solution suitable for applications such as retail, office spaces, and residential environments. Its robust design ensures reliability and consistent performance in various operational scenarios.
Specifications
System |
|
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
Audio and Video |
|
| IP Camera Input | 8/16 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
Display |
|
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Decoding Capacity | 2ch@4K(30fps)/8ch@1080P(30fps) |
| Multi-screen Display | 8CH: 1/4/8/9 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
Recording |
|
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Video Detection and Alarm |
|
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | N/A |
| Alarm output | N/A |
Playback and Backup |
|
| Playback | 8CH: 1/4/9 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Third-party Support |
|
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
Network |
|
| Interface | 1 RJ-45 Port (10/100Mbps) |
| Ethernet Port | 1 Independent 100Mbps Ethernet Port |
| PoE | 8 Ports(IEEE802.3at/af) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
Storage |
|
| Internal HDD | 1 SATA III Port, Up to 6 TB capacity for each HDD |
| HDD Mode | Single |
Auxiliary Interface |
|
| USB | 2 ports(1 Rear USB2.0, 1 Front USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
Electrical |
|
| Power Supply | DC48V/2A |
| Power Consumption | NVR: <8.3W (Without HDD) PoE: Max 25.5w for single port, 80w in total |
Environmental |
|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
Construction |
|
| Dimensions | Compact 1U, 260mm×224.9mm×47.6mm (10.2" x 8.9" x 1.9") |
| Net Weight | 0.8kg (1.76 lb) (without HDD) |
| Gross Weight | 1.6kg(3.53 lb)(without HDD) |
Certifications |
|
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL60950-1 |
