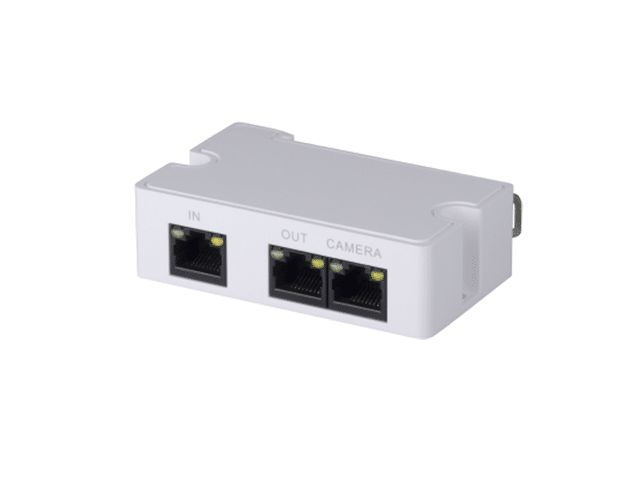

Dahua, PFT1300, POE Passive Extender
Dahua, PFT1300, POE Passive Extender
Dahua, PFT1300, POE Passive Extender
The Dahua PFT1300 POE Passive Extender enhances network connections by extending the reach of Power over Ethernet (PoE) signals. This device extends both data and power transmission over longer distances, making it ideal for surveillance systems with extended cabling. With the ability to extend PoE signals up to 100 meters, the PFT1300 eliminates the need for additional power sources and simplifies installations, reducing costs. It is compatible with a wide range of IP cameras and devices, providing a reliable connection even in challenging installation environments. Additionally, the extender’s compact design ensures easy integration into various setups without taking up much space. The PFT1300 is perfect for enhancing PoE systems where long-distance coverage is required, offering flexibility and reliable performance for surveillance, networking, and security applications. This device is essential for maintaining high-quality performance while overcoming distance limitations.
Features
- Support passive PoE cascade power supply and Ethernet data exchange
- Support IEEE 802.3af/at standard power supply IP Camera
- Works with High PoE Midspan (PFT1200) to cascade level 2 PoE Extender, connecting 3 IPCs, max distance 300m.
- 1RJ45 10/100M input for PoE power; 1RJ45 10/100M powers IP cameras; 1*RJ45 10/100M for extender.
- Installation mode: junction box internal mounting, DIN rail mounting
| Model | PFT1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port |
1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission Distance | Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, total power consumption <=25W), transmission distance is 300m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | =3W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Application Humidity | 10%~90% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Temperature | ¯¹£30°C~65°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 57g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension(WxDxH) | 79mmx52mmx23mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
