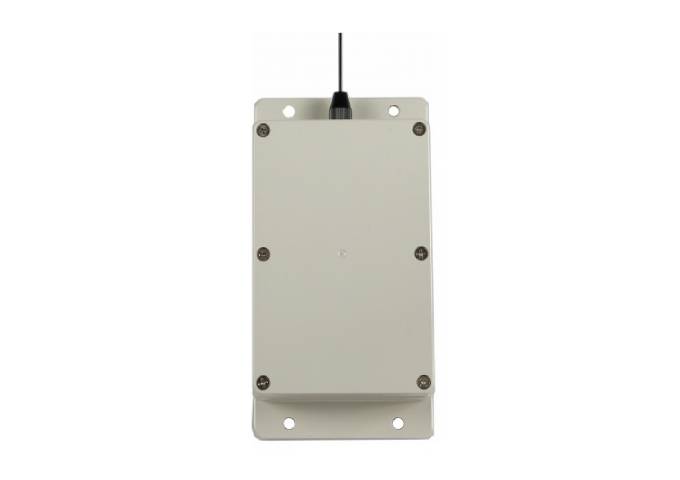

DFM, RRW01, Wiegand Receiver 4-Channel, For Outdoor Applications, Weather Resistant
DFM, RRW01, Wiegand Receiver 4-Channel, For Outdoor Applications, Weather Resistant
Part Number:
ACC181
SKU: ACC181
Categories:
Access Control,
Access Control Systems,
DFM Security Technology,
Transmitters & Receivers
Brand:
DFM Security Technology
Need help? Contact Us Now!
Trade pricing available via login.
View full details
DFM, RRW01, Wiegand Receiver 4-Channel, For Outdoor Applications, Weather Resistant
The DFM RRW01 is a 4-channel Wiegand receiver designed for outdoor use, offering reliable, weather-resistant functionality. Built to withstand various environmental conditions, it is ideal for access control systems needing robust performance. LED indicators provide quick, clear channel status updates, enhancing usability in secure or high-traffic areas. This receiver supports 26-bit Wiegand protocol, ensuring compatibility with standard access systems and smooth integration into existing setups. Overall, the RRW01 delivers durability, secure operation, and easy monitoring for outdoor applications.
Features of DFM, RRW01, Wiegand Receiver 4-Channel:
- Wiegand 26bit, 4 channels
- 433Mhz; other frequencies available on request
- Option of site-code-verification or non-code-verification (all pass through)
- Outdoor version RRW01: IP 65
- Indoor version RRW02: compact design; can be easily fitted into a third party cabinet
- Each channel has an on-board LED to indicate data passage
Specifications:
- 4-channel standard 26bit Wiegand output
- Frequency: 433MHz
- Voltage: 9-15VDC
- Current: 15mA
- Option of pass-through or site-code verification
- IP65 rating for RRW01
-
Dimensions:
- RRW01: 190mm (L) x 100mm (W) x 45mm (H)
- RRW02: 87mm (L) x 63mm (W) x 27mm (H)
