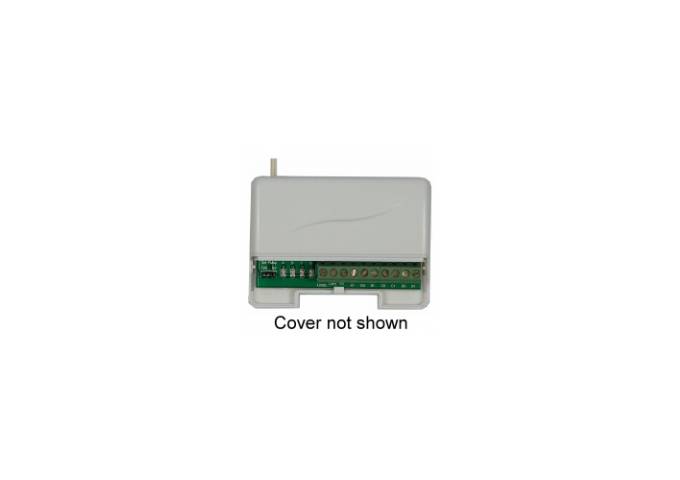

DFM, RRW02, Wiegand 26 Receiver, Indoor Version 4-Channel, With LED Indication
DFM, RRW02, Wiegand 26 Receiver, Indoor Version 4-Channel, With LED Indication
Part Number:
ACC182
SKU: ACC182
Categories:
Access Control,
Access Control Systems,
DFM Security Technology,
Transmitters & Receivers
Brand:
DFM Security Technology
Need help? Contact Us Now!
Trade pricing available via login.
View full details
DFM, RRW02, Wiegand 26 Receiver, Indoor Version 4-Channel, With LED Indication
The DFM RRW02 is a 4-channel Wiegand 26 receiver designed for indoor use, featuring LED indicators for enhanced visibility. This receiver provides reliable communication with Wiegand-compatible devices, facilitating seamless integration into access control systems. Its user-friendly design allows for straightforward installation and operation, ensuring effective management of entry points. With robust performance, it consistently monitors and signals access events, making it a practical choice for various applications, including commercial and residential settings. Overall, the RRW02 combines functionality and ease of use to enhance security solutions.
Features
- Wiegand 26bit, 4 channels
- 433Mhz; other frequencies available on request
- Option of site-code-verification or non-code-verification (all pass through)
- Outdoor version RRW01: IP 65
- Indoor version RRW02: compact design; can be easily fitted into a third party cabinet
- Each channel has an on-board LED to indicate data passage
Specifications:
- 4-channel standard 26bit Wiegand output
- Frequency: 433MHz
- Voltage: 9-15VDC
- Current: 15mA
- Option of pass-through or site-code verification
- IP65 rating for RRW01
-
Dimensions:
- RRW01: 190mm (L) x 100mm (W) x 45mm (H)
- RRW02: 87mm (L) x 63mm (W) x 27mm (H)
