Elite Alarms, CRO243 Anti Masking Dual Technology Sensor
Elite Alarms, CRO243 Anti Masking Dual Technology Sensor
Elite Alarms, CRO243 Anti Masking Dual Technology Sensor

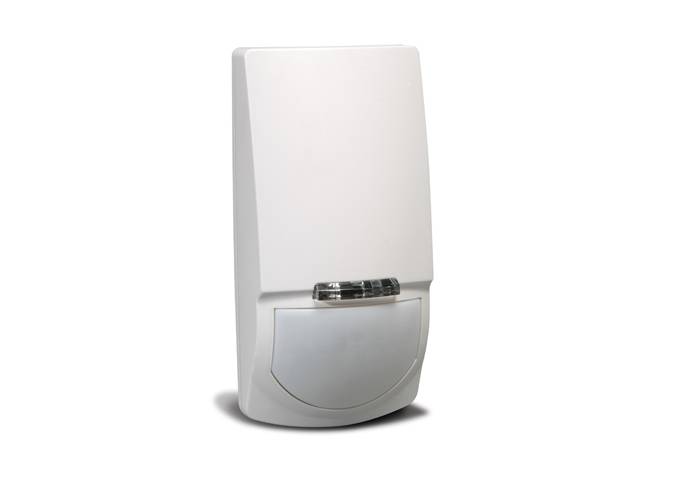

The Elite Alarms CRO243 Anti-Masking Dual Technology Sensor integrates both Passive Infrared (PIR) and microwave detection, offering superior security. By combining these two technologies, the sensor effectively reduces false alarms while maintaining high detection accuracy. One of the key features of the CRO243 is its anti-masking capability, which prevents interference from environmental factors, such as the covering of the sensor, ensuring reliable operation at all times. This feature enhances security, especially in high-risk areas where tampering could occur. Suitable for residential, commercial, and industrial applications, the CRO243 is designed for easy installation and integration into existing security systems. Its durable construction ensures long-term reliability, making it an ideal choice for protecting valuable assets and providing peace of mind. With advanced technology and robust protection, the CRO243 provides an effective solution for comprehensive security needs.
Specifications:
| Detection Method | Passive Infrared Detector with Optical Anti-Masking by IR signal |
| Power Input | 9 to 16 Vdc |
| Current Draw | Active: 17mA (± 5%), Standby: 14mA (± 5%) |
| Temp Compensation | YES |
| Alarm Period | 2 +/- 1 sec |
| Alarm Output | Form A N.C 28Vdc 0.1 A (with 10 Ohm series protection resistor) |
| AM / Trouble Output | Form A N.C 28Vdc 0.1 A (with 10 Ohm series protection resistor) |
| Tamper Switch | N.C 28Vdc 0.1 A (with 10 Ohm Resistors) open on cover removal |
| Warm-Up Period | 30 seconds |
| LED Indicator | All LEDs during Warm-Up Green LED when PIR Detection RED LED for 2 sec during ALARM YELLOW LED during Trouble/AM Detection |
| Operating Temperature | -10ºC ~ +50 ºC |
| Dimensions | 123.5mm x 61.5mm x 40mm |
| Weight | 102gr |
