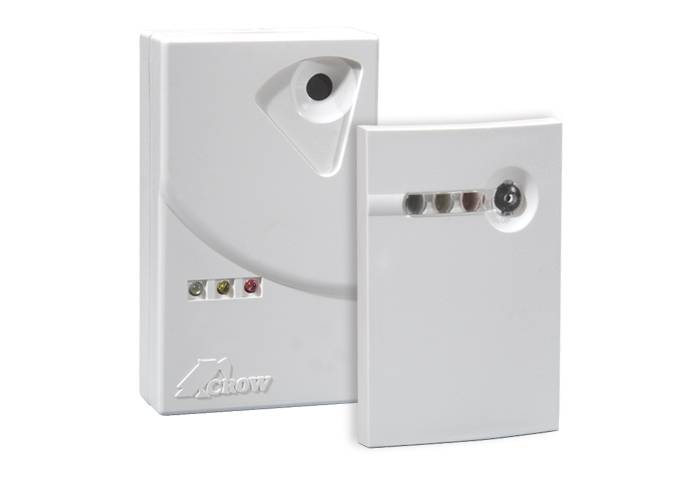

Elite Alarms GBD03 Plus Glassbreak Detector
Elite Alarms GBD03 Plus Glassbreak Detector
Part Number:
CRO201
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Elite Alarms GBD03 Plus Glassbreak Detector
The Elite Alarms GBD03 Plus Glassbreak Detector provides advanced security by accurately detecting the sound of breaking glass in protected areas. It utilizes state-of-the-art audio analysis technology to distinguish the specific frequency and pattern of shattering glass, minimizing false alarms from common household noises. This detector is suitable for residential and commercial installations, offering a wide detection range that can cover multiple windows in a single room. Its compact and sleek design allows for discreet placement, blending seamlessly into any environment.
Shock and/or breakage selectable. Analyzes two frequencies. Unique signal analysis ignores environmental disturbances. Memory LED. ASIC based electronics. Sensitivity adjustment. Ceiling or wall mount.
Specifications:
| Detection method | Electro condenser microphone | |
| Detection range | 10m, Adjustable | |
| Alarm period | 2 sec (± 0.5sec) | |
| Led indicators | Green LED for Shock Yellow LED for Glass Red LED during Alarm |
|
| Warm up period | 60 sec (± 5sec) | |
| Alarm output | N.C 50mA/24Vdc with 10 Ohm in line resistor | |
| Tamper Switch | N.C 50mA 24Vdc with 10 Ohm in line resistor | |
| Operating voltage | 9 to 16 VDC | |
| Current draw | Active: 25 mA (± 5%), Standby: 22 mA (± 5%) | |
| RFI protection | 30V/m 10 – 1000MHz | |
| EMI protection | 50,000V of electrical interference from lightning or power through | |
| Temperature compensation | Yes | |
| Operating temperature | -20°C to +50°C | |
| Dimensions | GDB-II : 92 mm x 54 mm x 24 mm | GBD PLUS : 78 mm x 51 mm x 21 mm |
| Weight | 45 gr | 40 gr |
