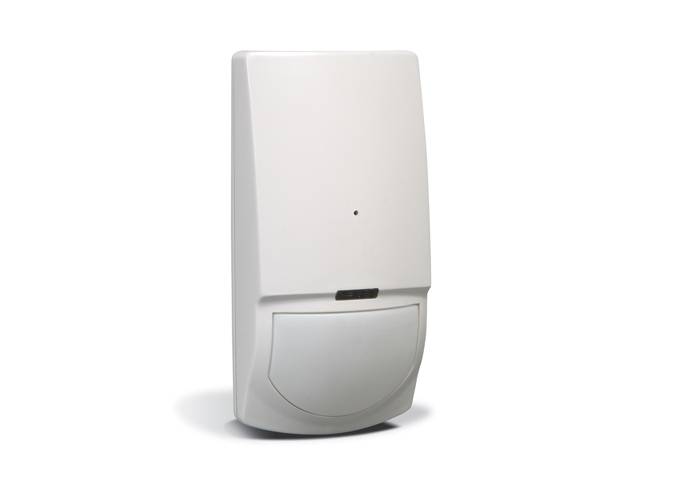

Elite Alarms SWAN PGB PIR & Glass Break Detector
Elite Alarms SWAN PGB PIR & Glass Break Detector
Part Number:
CRO245
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Elite Alarms SWAN PGB PIR & Glass Break Detector
The Elite Alarms SWAN PGB PIR & Glass Break Detector combines dual functionalities for comprehensive security, offering precise motion detection and advanced glass break detection in a single unit. Using PIR technology, it identifies human movement with high accuracy, minimizing false alarms caused by pets or environmental factors. Simultaneously, its glass break sensor analyzes sound patterns to detect breaking glass, ensuring prompt alerts against intrusion.
Quad (Four element) pyro sensor. Two independent relay outputs for GLASS/SHOCK and PIR alarm signals. VLSI SMD technology. PIR sensitivity adjustment. GLASS sensitivity adjustment. SHOCK sensitivity adjustment. Volume protection. Automatic temperature compensation. Height installation calibrations free – 1.8m-2.4m. Environmental immunity. The Swan PGB provides pet immunity up to 25Kg. Pet active bellow 1m.
Specifications:
| Detection method | Quad (Four Element) PIR & Microphone |
| Detection range | Glass up to 10m ( 90° ); PIR up to 15m (WA lens) |
| Alarm period | 2 sec (± 1 sec) |
| Led indicators | Yellow LED (GLASS) – glass break signal for testing & adjustment Green LED (SHOCK) – shock signal for testing & adjustment Red LED (ALARM) – alarm signal Fleshing light – glass & break detection or glass & shock & PIR detection Constant light – PIR detection |
| Warm-up period | 60sec (± 5sec) |
| Alarm output | N.C 28VDC 0.1 A with 10 Ohm series protection resistor |
| Tamper Switch | N.C 28VDC 0.1A with 10 Ohm series protection resistor open when the cover is removed |
| Operating voltage | 8.2 to 16 VDC |
| Current draw | Alarm PIR:16.5mA Alarm Shock & Glass: 22mA; Alarm all: 18mA Standby: 16.5 mA |
| White light filter | 3500 Lux up to 6500 Lux with optional filter |
| RFI protection | 30V/m 10 – 1000MHz |
| EMI protection | 50,000V of electrical interference from lightning or power through |
| Optimum installation height | 1.8m to 2.4m |
| Temperature compensation | Yes |
| Operating temperature | -10°C to +50°C |
| Dimensions | 123mm x 62mm x 38mm |
| Weight | 110 gr |
