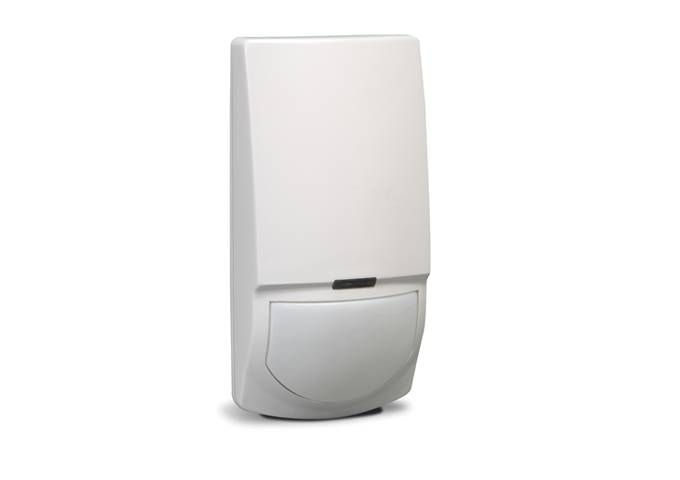

Elite Alarms, SWAN04 1000 Microwave PIR
Elite Alarms, SWAN04 1000 Microwave PIR
Part Number:
CRO242
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Elite Alarms, SWAN04 1000 Microwave PIR
The Elite Alarms SWAN04 1000 Microwave PIR uses microwave sensing technology to detect movement over a large area. This advanced sensor minimizes false alarms by distinguishing between real threats and environmental factors. It provides adjustable sensitivity, allowing users to fine-tune detection range based on specific needs. With easy installation and seamless integration into existing security systems, the SWAN04 1000 is suitable for both residential and commercial applications. Its robust design ensures reliable performance in various conditions, offering enhanced protection and security for properties. This makes it an ideal choice for anyone seeking a dependable, efficient motion detection solution.
Specifications:
| Detection method | Quad (Four Element) PIR & MW Doppler |
| MW Frequency | X-Band – 10.525GHz / 10.687 GHz / 9.9 GHz |
| Alarm period | 2 sec (± 1 sec) |
| Led indicators | Green &Yellow LEDs blinking during warm-up period and self-testing Red LED: ON during alarm Green LED: PIR CHANNEL Yellow LED: MW CHANNEL |
| Warm up period | 60sec (± 5sec) |
| Alarm output | N.C 28VDC 0.1 A with 10 Ohm series protection resistor |
| Tamper Switch | N.C 28VDC 0.1A with 10 Ohm series protection resistor open when the cover is removed |
| Operating voltage | 9.6 to 16 VDC |
| Current draw | Active: 23mA (± 5%), Standby: 19mA (± 5%) |
| White light filter | 3500 Lux up to 6500 Lux with optional filter |
| RFI protection | 30V/m 10 – 1000MHz |
| EMI protection | 50,000V of electrical interference from lightning or power through |
| Optimum installation height | 1.8m to 2.4m |
| Temperature compensation | Yes |
| Operating temperature | -10°C to +50°C |
| Dimensions | 123mm x 62mm x 38mm |
| Weight | 120 gr |
