LOX, EM3500, Non-monitored magnetic lock, 280kg
LOX, EM3500, Non-monitored magnetic lock, 280kg
Part Number:
LOX100
Need help? Contact Us Now!
Trade pricing available via login.
View full details

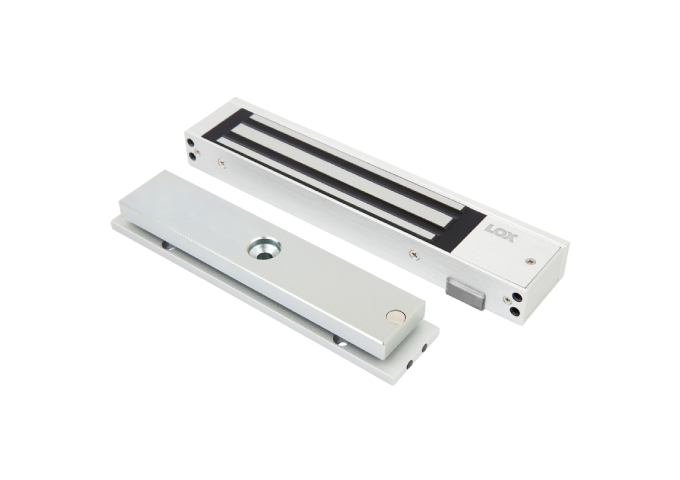

LOX, EM3500, Non-monitored magnetic lock, 280kg
The LOX EM3500 is a robust non-monitored magnetic lock, designed to provide reliable security with a holding force of 280kg. It operates seamlessly in a variety of applications, ensuring secure door access control. Engineered for durability, this lock withstands harsh environments and frequent usage, making it ideal for both commercial and residential installations. Its simple design allows for easy installation, while the powerful holding force offers dependable security for doors. The EM3500 is perfect for installations where monitored systems are not required, providing a cost-effective yet secure solution.
The LOX EM3500 Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

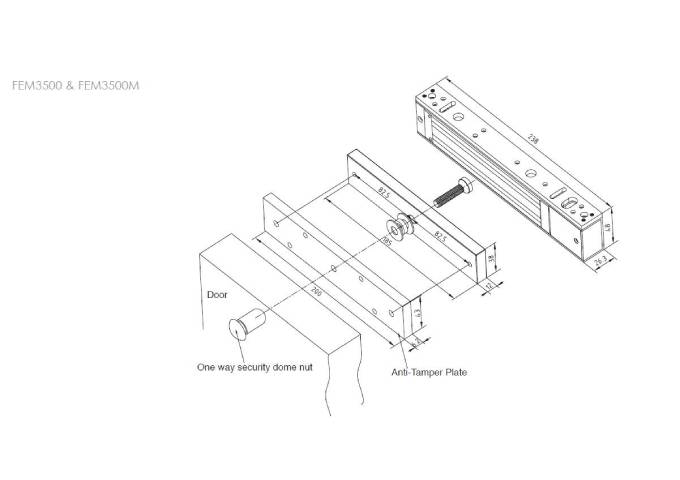

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500 | Single Electro Magnetic Lock Non Monitored |
| EM3500M | Single Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
