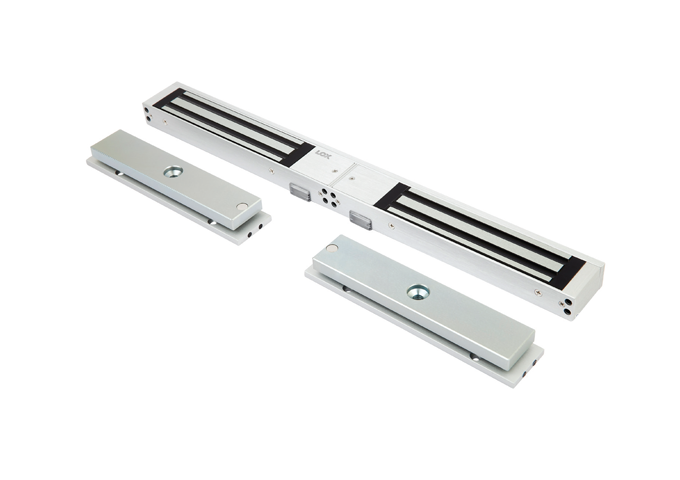

LOX, EM3500D, Slimline Standard Double Magnetic Lock 280kg
The LOX EM3500D is a slimline double magnetic lock designed for enhanced security with a holding force of 280kg. It offers a compact solution while maintaining high durability, making it ideal for various door types. The lock is easy to install, ensuring efficient setup in both commercial and residential applications. Its robust design guarantees long-lasting performance, withstanding high-frequency use and environmental factors. Additionally, the EM3500D provides secure access control without the need for monitored systems, offering a reliable and cost-effective locking solution for a wide range of security needs.
The LOX EM3500D Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

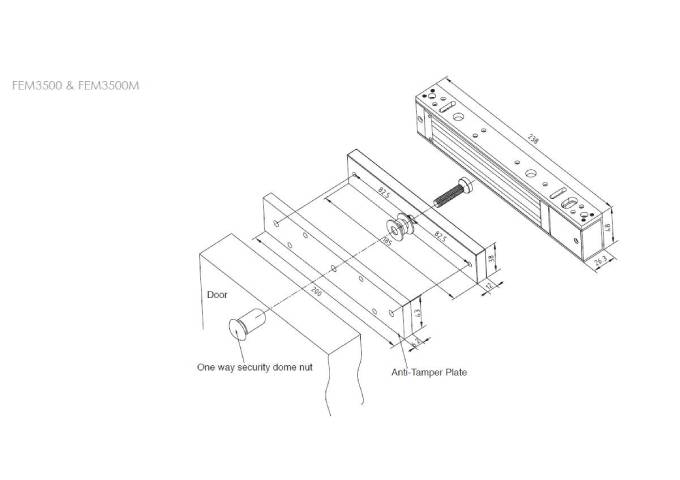

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500D | Double Electro Magnetic Lock Non Monitored |
| EM3500M | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA x 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
