LOX, EM3500FM, Recess Mag Lock 280kg
LOX, EM3500FM, Recess Mag Lock 280kg
Part Number:
LOX104
Need help? Contact Us Now!
Trade pricing available via login.
View full details
LOX, EM3500FM, Recess Mag Lock 280kg

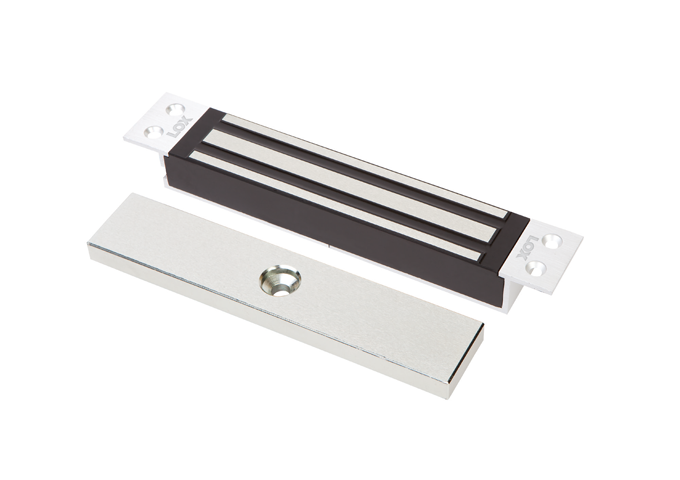

The LOX EM3500FM is a recessed magnetic lock designed to deliver a holding force of 280kg. This lock offers a discreet installation, making it ideal for setups where a concealed appearance is essential. Built for durability, it provides reliable security and optimal performance in various environments. The 280kg holding force ensures robust protection, preventing unauthorized access. Additionally, the EM3500FM is designed for easy integration into existing systems, offering flexibility and versatility. Perfect for commercial applications, this magnetic lock combines strength with a sleek, unobtrusive design for seamless security solutions.
The LOX EM3500FM Flush Mount Electro Magnetic Lock was designed for securing single leaf internal sliding doors. The lock is mortised into the door frame and has a holding force of up to 280kg. It has Lock Status Senor (LSS) monitoring function (Hall-Effect).
EM3500FM Facts:
- Built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS)
- Built-in varistor (MOV) surge protection
- CE/RCM Approvals
- Lifetime warranty
- No residual magnetism
Specifications:
| EM3500FM | FLUSH MOUNT ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH | UP TO 280KG, TESTED TO 400.00 CYCLES |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 500mA 24VDC = 250mA |
| APPROVALS | CE & C-TICK |
| LSS MONITORING | LSS LOCK STATUS SENSOR (HALL EFFECT) |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
