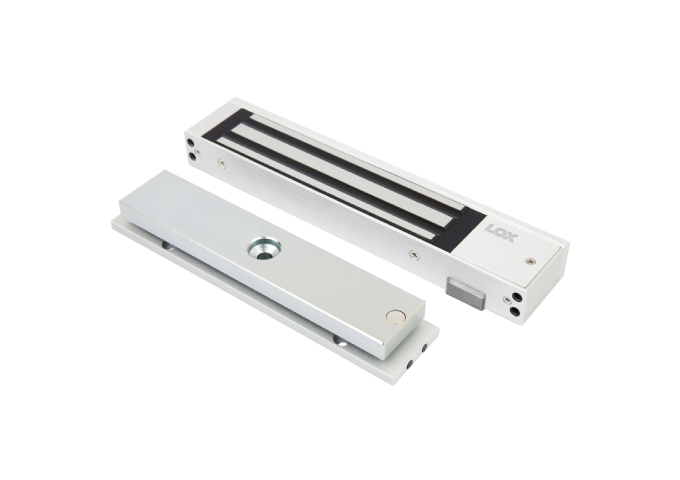

LOX, EM3500M, Magnetic Lock Monitored 280kg
LOX, EM3500M, Magnetic Lock Monitored 280kg
Part Number:
LOX102
Need help? Contact Us Now!
Trade pricing available via login.
View full details
LOX, EM3500M, Magnetic Lock Monitored 280kg
The LOX EM3500M is a monitored magnetic lock that delivers a strong holding force of 280kg for reliable security. Designed for high-performance, it ensures secure access control for both commercial and residential settings. This lock features a monitored system that provides real-time status feedback, offering enhanced security and control. Its durable construction ensures long-term reliability and resistance to frequent use. The EM3500M is also easy to install, making it a practical solution for various applications. With its efficient monitoring system and robust build, this lock ensures safety while maintaining flexibility and performance across multiple environments.
The LOX EM3500 Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

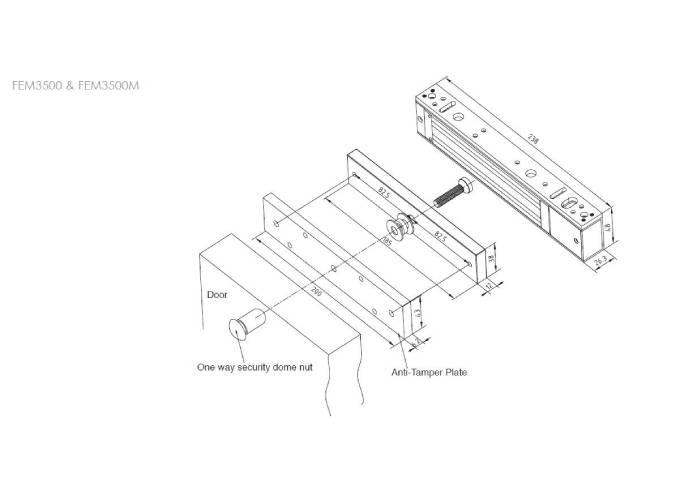

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500 | Single Electro Magnetic Lock Non Monitored |
| EM3500M | Single Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
