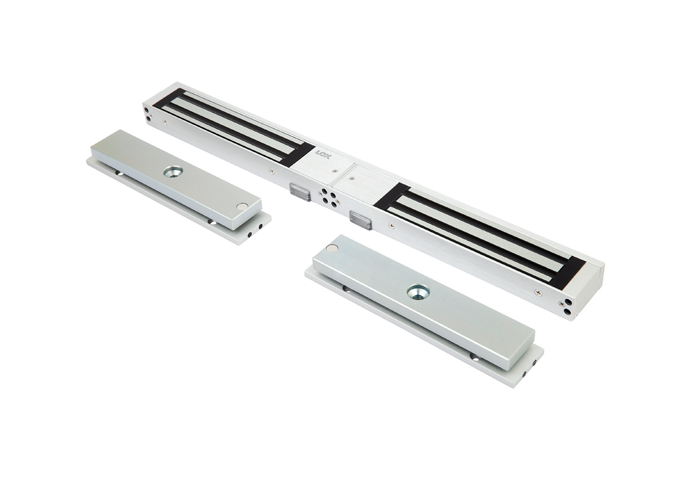

LOX, EM3500MD, Double Door 12/24V Monitored 280kg
The LOX EM3500MD is a double-door monitored magnetic lock system offering a holding force of 280kg. Designed for 12/24V systems, it provides flexibility for various installations. This lock features real-time monitoring, ensuring secure access control by offering status feedback. Its robust construction guarantees durability and reliable performance in high-traffic areas. The EM3500MD is perfect for double-door configurations, enhancing security while maintaining ease of installation. Whether for commercial or residential use, this magnetic lock delivers optimal security and peace of mind, efficiently protecting your premises from unauthorized access while ensuring long-lasting reliability.
The LOX EM3500D Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

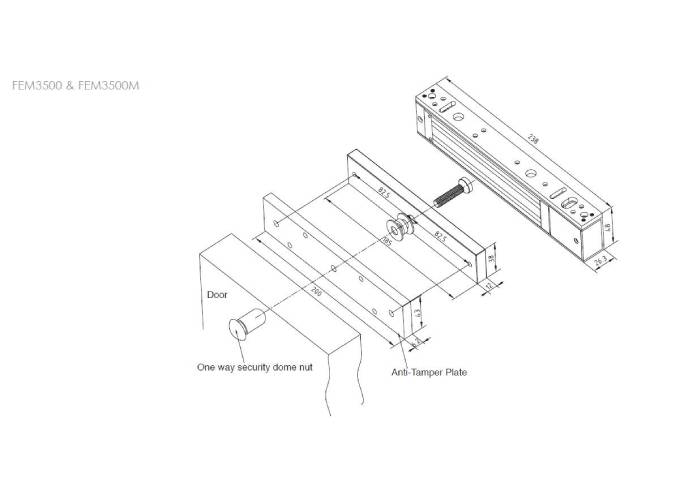

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500D | Double Electro Magnetic Lock Non Monitored |
| EM3500M | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA x 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
