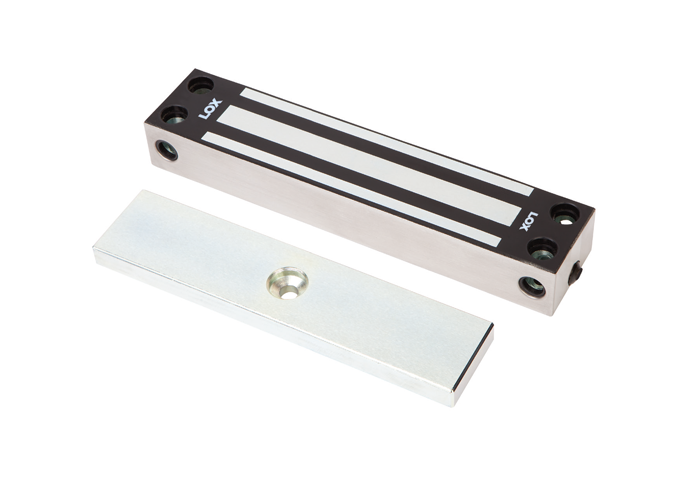

LOX, EM4700, Weather Resistant S/Steel Monitored 380kg Gate Lock
The LOX EM4700 has been designed with a fully enclosed stainless-steel housing. It is one of the most reliable locking devices for true external applications exposed to wind and weather. The EM4700 lock is IP67 rated and a proven locking solution in the harshest environments around Australia such as surf-lifesaving clubhouses and the like. It has a holding force of up to 380kg a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC.
The LOX EM4700 is a weather-resistant stainless steel monitored gate lock, designed for durable outdoor use. Offering a 380kg holding force, it provides reliable security for gates in various environments. The lock’s stainless steel construction ensures resistance to harsh weather conditions, maintaining optimal performance over time. Monitored functionality allows real-time alerts, ensuring any tampering or unauthorized access is promptly detected. With its robust build and secure features, the EM4700 is ideal for high-security gate access control, delivering both reliability and peace of mind for sensitive applications. This lock effectively balances security and practicality.
The EM4700 Electro Magnetic Gate Lock has a Lock Status (LSS) monitoring feature by HallEffect and comes with a Lifetime Warranty.
EM4700 Facts:
- Up to 380kg holding force
- Lock Status monitoring Sensor (LSS)
- Stainless 304 steel body housing
- Weather resistant IP67
- Lifetime warranty
- CE/RCM
- No residual magnetism
Specifications:
| EM4700 | Weather Resistant Electro Magnetic Gate Lock Monitored |
| HOLDING STRENGTH | UP TO 380KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 400mA 24VDC = 200mA |
| APPROVALS | CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| ENVIRONMENTAL | IP67 RATED, OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
