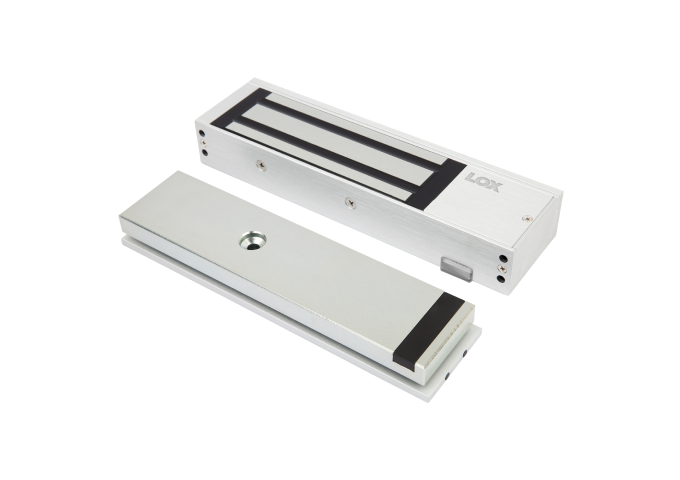

The LOX EM5700 is an unmonitored single magnetic lock and the EM5700D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings. The EM5700 is a monitored single magnetic lock and the EM5700DM is a monitored double magnetic lock with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS). The devices have a patented highly visible high luminosity Light Panel and Door Status Sensor (DSS) for remote monitoring of the door status through a reed switch contact as well as a Lock Status Sensor (LSS). The monitored devices come with a Patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.†All EM5700 Series Electro Magnetic Locks come with a lifetime warranty and have no residual magnetism.
Features of LOX EM5700:
- Door and Lock Status Monitoring Sensor (DSS & LSS with “M†Models)
- Built-in varistor (MOV) surge protection
- CE/C-Tick
- SCEC Approved for the secure area (EM5700M&DM)
- Anti Tamper Plate (with “M†Models)
- Long-distance Light Panel (LP)
- Lifetime warranty
- 4-hour fire tested
- No residual magnetism
Technical Specifications:
| PART No. |
EM5700 (single) EM5700D (double) |
| HOLDING STRENGTH | Up to 580kg (for single magnetic lock) |
| VOLTAGE/CURRENT | Dual Voltage 12/24VDC 12VDC=500mA (Double x2) 250VDC=260mA (Double x2) |
| APPROVALS | 4-hour fire rated to A.S. and B.S. standards, SCEC approved for secure areas (FEM5700M & DM) |
| MONITORING |
NIL |
| SIZE |

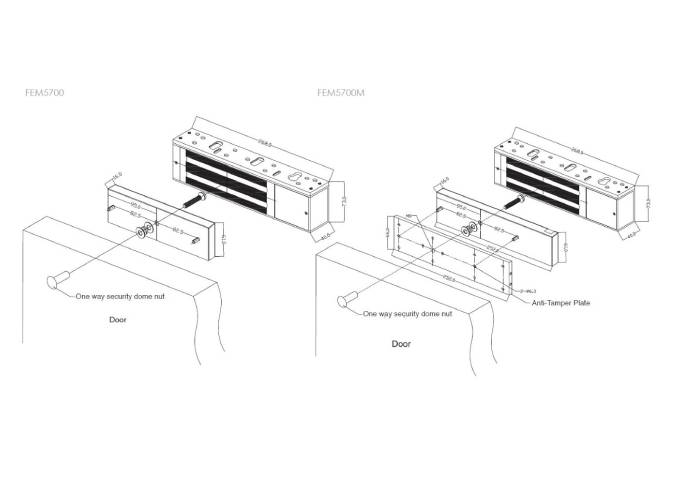

Single door series magnet size: L= 268 x W= 73 x D= 40mm Single door series armature plate size: L= 190 x W= 61 x D= 16mm Single door series DSS-armature plate size: L= 252 x W= 61 x D= 16mm |
