The LOX EM5700D Series offers both monitored and non-monitored magnetic locks, providing versatile security solutions for single doors. Designed with a robust 580kg holding force, the lock ensures reliable performance in both monitored and non-monitored applications. It features high-quality materials, ensuring long-term durability and resistance to wear, making it ideal for various environments. Available in both 12V and 24V DC options, it offers flexibility in installation. Whether used in commercial, residential, or industrial settings, the EM5700D Series delivers consistent and secure locking while integrating seamlessly into any security system.
The LOX EM5700D Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

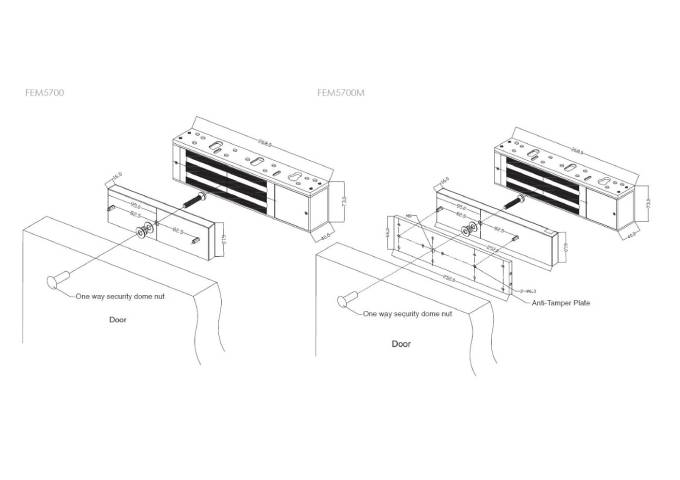

- Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM5700D | Double Electro Magnetic Lock Non Monitored |
| EM5700M | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 580kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA X 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
