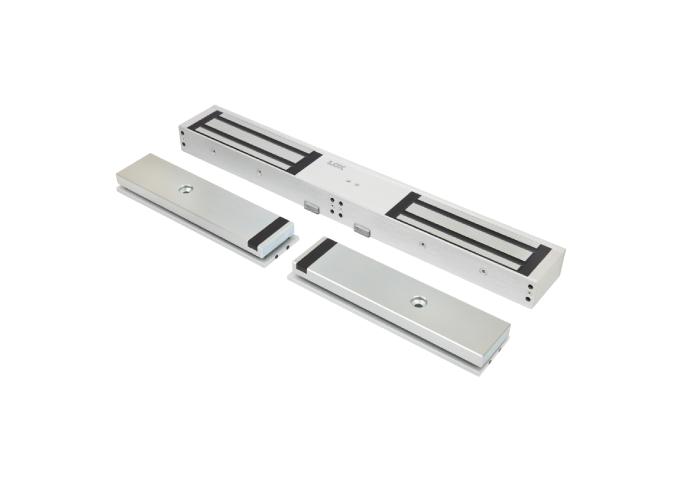

LOX, EM5700DM, Double Mag Lock 580kg
LOX, EM5700DM, Double Mag Lock 580kg
LOX, EM5700DM, Double Mag Lock 580kg
The LOX EM5700DM Double Magnetic Lock delivers robust security with a holding force of 580kg, making it ideal for high-security applications. This dual mag lock ensures reliable performance and enhanced safety for double-door installations. Built with durable materials, it resists wear and adapts well to various environments, including demanding conditions. Its sleek design complements modern architectural aesthetics while maintaining superior functionality. The lock supports flexible installation on different door types and operates seamlessly on 12V or 24V DC systems. With advanced features for secure locking, the EM5700DM is a dependable solution for residential, commercial, or industrial security needs.
The LOX EM5700D Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

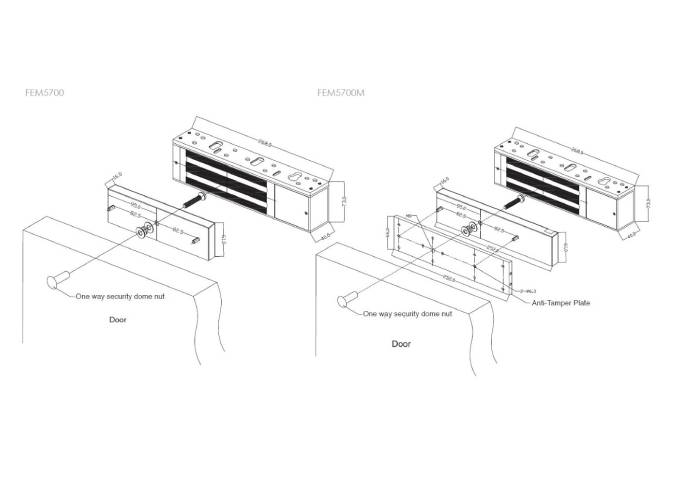

- Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM5700D | Double Electro Magnetic Lock Non Monitored |
| EM5700DM | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 580kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 500mA x 2 24VDC = 260mA x 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
