LOX, EM5700M, Magnetic Lock 580kg

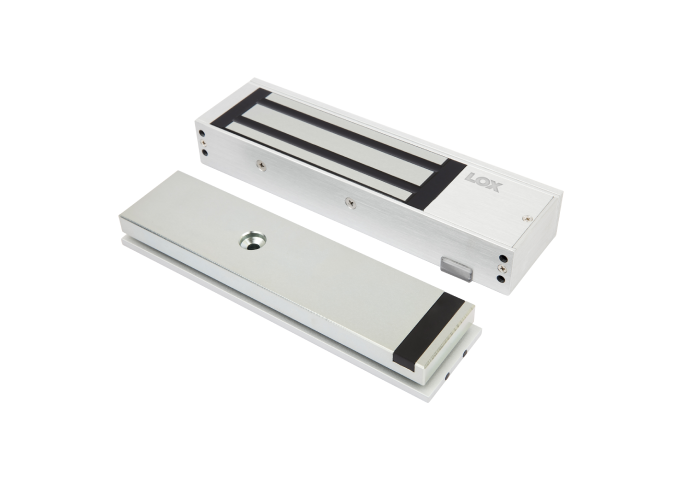

The LOX EM5700M Magnetic Lock provides a secure and reliable solution with a strong 580kg holding force. Designed for single-door applications, it ensures effective locking while maintaining durability under frequent use. Its high-quality construction adapts seamlessly to various environments, including challenging conditions, ensuring long-lasting performance. With support for 12V and 24V DC operation, it offers flexible installation and compatibility. The sleek design enhances the appearance of modern installations while delivering robust functionality. Ideal for residential, commercial, or industrial settings, the EM5700M combines advanced locking technology with dependable performance to meet diverse security requirements.
The LOX EM5700D Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

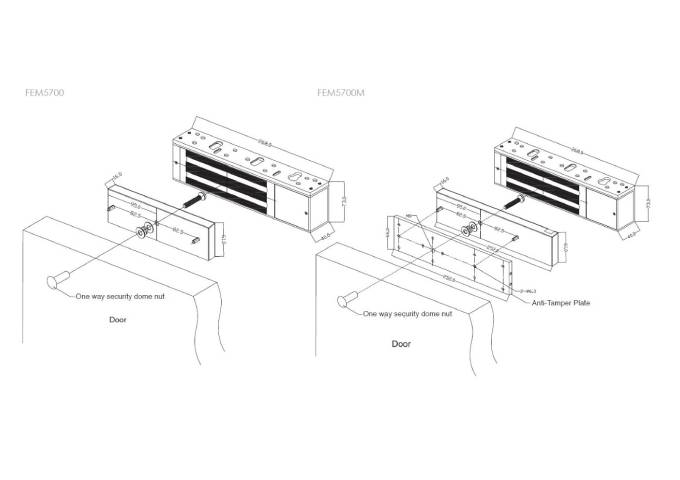

- Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM5700 | Singe Electro Magnetic Lock Non Monitored |
| EM5700M | Single Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 580kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 500mA 24VDC = 260mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
