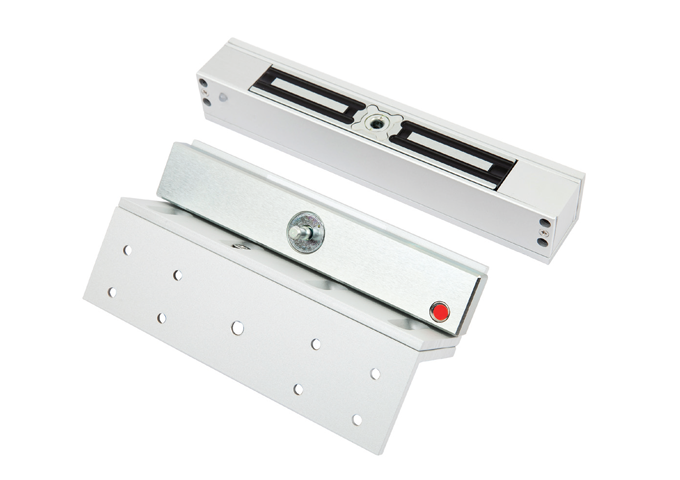

LOX, MML2400LZ, Mechanical Magnetic Lock & L&Z Inward Opening

LOX, MML2400LZ, Mechanical Magnetic Lock & L&Z Inward Opening

The LOX MML2400LZ Mechanical Magnetic Lock is designed for inward-opening doors, offering reliable and secure locking functionality. This system integrates a robust L&Z bracket, ensuring easy and stable installation. The lock features strong magnetic force to secure doors effectively, providing long-lasting performance in various environments. Crafted with durable materials, the lock is ideal for both residential and commercial use, maintaining security and ease of operation. With simple installation and efficient design, it is well-suited for a wide range of door types, ensuring smooth, dependable security for high-traffic areas.

The LOX MML Series fully monitored locking device is an innovative alternative to traditional Electro Magnetic Locks. A clever combination of magnetic and mechanical locking components makes the MML a locking device with superior holding force of up to 1000kg, whilst being 75% smaller than a standard 600kg Electro Magnetic Lock. 70kg side pressure (pre-load) capability on the door, a smart “Early Warning Alarm” security function and a low current draw rating complete this clever product. The MML Lock is not recommended to be used on doors above 2400mm height.

MML2400LZ Facts

• 50% smaller than traditional 600kg holding force magnets
• Holding force of up to 1000kg
• Unlocks under side load of up to 70kg
• Dual-Voltage 12/24VDC reduced power consumption 24VDC/175mA
• 5 year warranty | 1 year warranty for electronic components
• 4 hour fire rated
• Full monitoring Lock Status Sensor (LSS) and Door  Status Sensor (DSS)
• Early Warning Security Alarm (EW)
